HEATING YOUR PROCESS
IS OUR PROCESS




Purpose Built
Industrial Electric Heaters

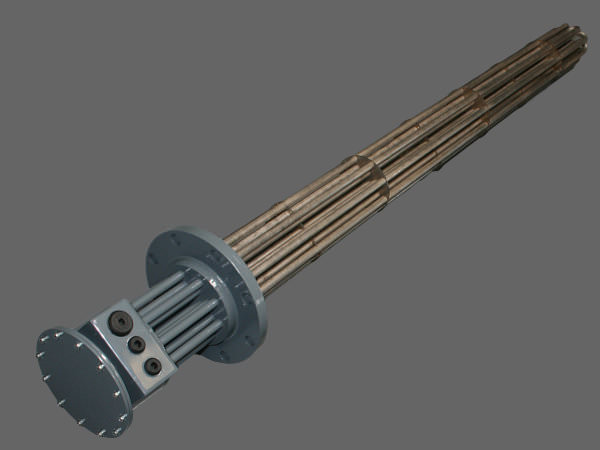

Flanged Immersion Heater

Immersion Heaters

Immersion heater applications include steam generation, heating of chemical solutions, water, oil and gases used in tanks and in circulation or flow heating applications. Configurations available include flanged, threaded and over the side.
Power up to 2.4Mw

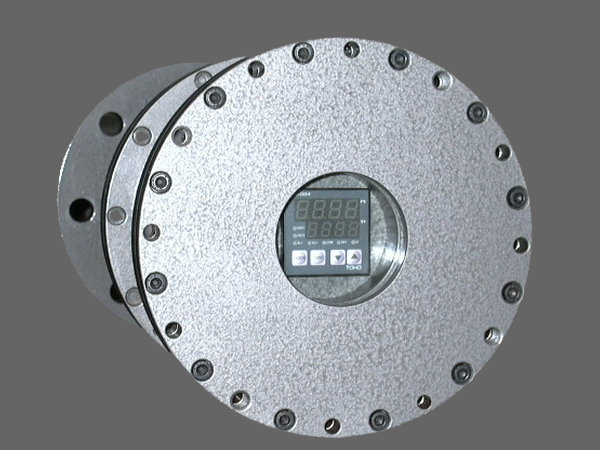

Flameproof Heater

Explosion Proof Heaters

Designed & manufactured in accordance with IEC/SANS 60079-0 and its design specific sections. Accredited 3rd party certification allows for the installation in hazardous areas Zone 1, Zone 2, gas groups IIA, IIB & IIC and temperature classes T1 to T6 as required by application.

Inline fuel oil Heater

Circulation Heaters

Circulation or In-line heaters are packaged units comprising of a shell and an immersion heater they are designed in accordance with Pressure Equipment Regulations (PER) & SANS-347 and then built to either SEP, ASME VIII or PD 5500 standards

Duct Heater

Duct Heaters

Also referred to as forced air heaters and are most commonly used in HVAC applications, other applications can include process heating, space heating and ovens.
Wattages up to 1Mw

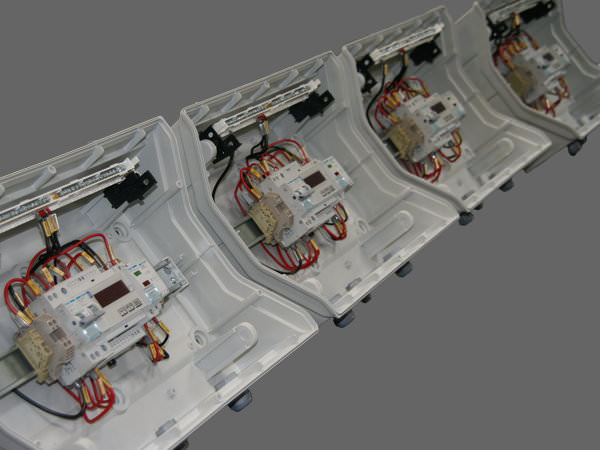

Temperature Control Units

Temperature & Control Systems

We design & fabricate temperature & process control panels with SSR, SCR or electromechanical switching.
All systems comply with local regulations and on request can be provided with a certificate of compliance.

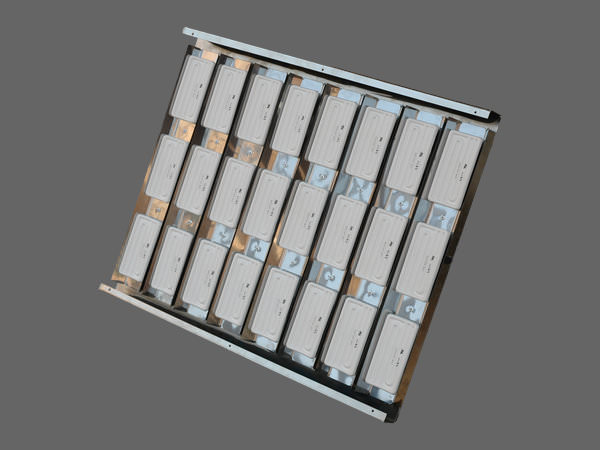

Infrared Element Bank

Custom Application Heaters

With more than two decades of experience, Darton Supplies can most surely offer you an efficient & reliable solution that will meet your heating requirements, no matter the application..

ThermTrace®
Self Regulating & Constant Power Trace Heating Tapes

ThermTrace® Lite (TTL)

A light industrial grade self-regulating heating tape suitable for low temperature maintenance of pipework and vessels.
Maximum exposure temperature 85°C (power off)
Maximum operating temperature 65ºC

ThermTrace® Regular (TTR)

Industrial grade self-regulating heating tape suitable for freeze protection or low temperature maintenance of pipework and vessels.
Maximum exposure temperature 85°C (power off)
Maximum operating temperature 65ºC

ThermTrace® Super (TTS)

Industrial high temperature self-regulating heating tape suitable for temperature maintenance on all industrial applications.
Maximum exposure temperature 210°C (power off)
Maximum operating temperature 120ºC

ThermTrace® X (TTX)

Industrial high temperature self-regulating heating tape suitable for temperature maintenance and rise on all industrial applications including steam-cleaning.
Maximum exposure temperature 240°C (power off)
Maximum continuous maintenance temperature 190°C

ThermTrace® Constant (TTC)

A constant wattage parallel heating tape, silicone insulation gives it good flexibility and the addition of a braid ensures it is tough even in arduous environments.
Maximum exposure temperature: 225°C

Accessories

Accessories include standard and ATEX approved termination kits,  junction boxes,control units, pipe mounting kits for junction boxes and control units as well as glass cloth & foil fixing tapes.

Mineral Insulated
Metal Sheathed Heating Cables

XSSTC

Stainless Steel Sheathed Twin Conductor Heating Cable.
For temperatures up to 500°C for short to medium length heating circuits.
Maximum withstand temperature
1000°C (power off)
Not approved for use in hazardous areas.

XSS

Stainless Steel Sheathed Single Conductor Heating Cable.
For temperatures up to 500°C for medium to long length heating circuits.
Maximum withstand temperature
1000°C (power off)
Approved for use in hazardous areas.

XCN

Cupro Nickel Sheathed Single Conductor Heating Cable.
For temperatures up to 250°C for medium to long length  heating circuits.
Maximum withstand temperature
400°C (power off)
Approved for use in hazardous areas.

XINC

Inconel Sheathed Single Conductor Heating Cable.
For temperatures up to 600°C for medium to long length heating circuits.
Maximum withstand temperature
1000°C (power off)
Approved for use in hazardous areas.

DuoTape®
High Temperature Heating Tapes

Higher Temperatures

Duo-Tape® heating tapes are insulated using AMOX™,a high temperature yarn allowing, these tapes to operate up to 760°C and have a de-energized withstand temperature of 870°C. They have better expansion properties than most other heating tapes due to their knitted sine wave configuration, coupled with element cores that are cushioned and supported by a knitted warp fabric allowing them to expand evenly in all directions.

WHO ARE WE ?

By choice we are small family business established in 1993 and located in Regents Park  South Africa. Our team consists of brothers Daryll & Quinten van Geelen, their spouses and a small compliment of loyal staff who share a common work ethic & similar values.

WHAT WE OFFER & TO WHO ?

We offer innovative and reliable industrial heaters, temperature & control systems in conjunction with a host of related products.
Our long standing clients include, petrochemical giant Sasol, Safurnco, Applied Heat and Eskom all of which we have been serving for more than 20 years.

WHAT SETS US APART ?

Transparency and integrity are the foundation of our business, keeping our business smaller makes it simpler to maintain these values.
Over the past two decades we have forged relationships with a multifaceted network of partners, expanding our capabilities and enabling us to overcome the limitations of being a smaller business.
